| Type | : Standard Type Without Hole |
| Feature | : Simple and Isolated Design |
| Code | : EUN |
| Advantages | : Insulation |
| Thickness | : 0,60 – 2,50 mm |
| Width | : 50-900 mm |
CoatIng Types
Technıcal Tables
| # | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Weight (kg/m) |
| 1 | EUN-05040-080 | Normal Type Non-Perforated Perforated Cable Duct | 0.8 | 50 | 40 | 0.902 |
| 2 | EUN-05040-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 50 | 40 | 1.089 |
| 3 | EUN-05040-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 50 | 40 | 1.282 |
| 4 | EUN-05040-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 50 | 40 | 1.568 |
| 5 | EUN-05040-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 50 | 40 | 2.026 |
| 6 | EUN-10040-080 | Normal Type Non-Perforated Perforated Cable Duct | 0.8 | 100 | 40 | 1.262 |
| 7 | EUN-10040-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 100 | 40 | 1.528 |
| 8 | EUN-10040-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 100 | 40 | 1.803 |
| 9 | EUN-10040-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 100 | 40 | 2.207 |
| 10 | EUN-10040-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 100 | 40 | 2.865 |
| 11 | EUN-15040-080 | Normal Type Non-Perforated Perforated Cable Duct | 0.8 | 150 | 40 | 1.623 |
| 12 | EUN-15040-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 150 | 40 | 1.967 |
| 13 | EUN-15040-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 150 | 40 | 2.324 |
| 14 | EUN-15040-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 150 | 40 | 2.846 |
| 15 | EUN-15040-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 150 | 40 | 3.703 |
| 16 | EUN-20040-080 | Normal Type Non-Perforated Perforated Cable Duct | 0.8 | 200 | 40 | 1.983 |
| 17 | EUN-20040-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 200 | 40 | 2.406 |
| 18 | EUN-20040-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 200 | 40 | 2.845 |
| 19 | EUN-20040-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 200 | 40 | 3.485 |
| 20 | EUN-20040-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 200 | 40 | 4.542 |
| 21 | EUN-25040-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 250 | 40 | 2.844 |
| 22 | EUN-25040-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 250 | 40 | 3.366 |
| 23 | EUN-25040-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 250 | 40 | 4.123 |
| 24 | EUN-25040-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 250 | 40 | 5.38 |
| 25 | EUN-30040-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 300 | 40 | 3.283 |
| 26 | EUN-30040-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 300 | 40 | 3.887 |
| 27 | EUN-30040-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 300 | 40 | 4.762 |
| 28 | EUN-30040-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 300 | 40 | 6.219 |
| 29 | EUN-40040-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 400 | 40 | 4.929 |
| 30 | EUN-40040-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 400 | 40 | 6.04 |
| 31 | EUN-40040-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 400 | 40 | 7.896 |
| 32 | EUN-50040-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 500 | 40 | 5.971 |
| 33 | EUN-50040-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 500 | 40 | 7.317 |
| 34 | EUN-50040-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 500 | 40 | 9.573 |
| 35 | EUN-60040-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 600 | 40 | 7.013 |
| 36 | EUN-60040-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 600 | 40 | 8.595 |
| 37 | EUN-60040-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 600 | 40 | 11.25 |

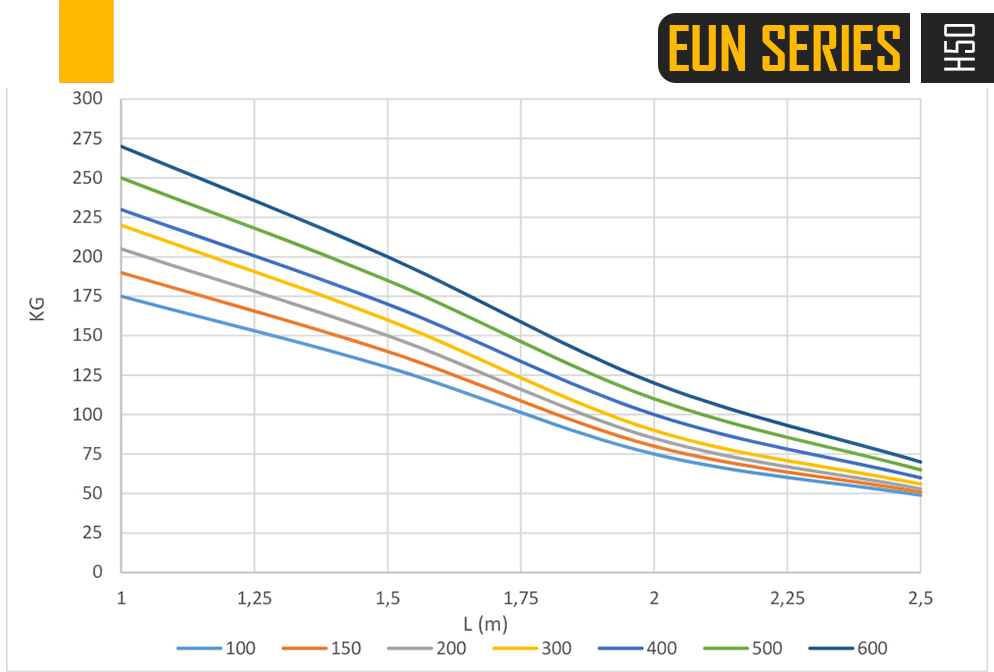

| # | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Weight (kg/m) |
| 1 | EUN-05050-080 | Normal Type Non-Perforated Perforated Cable Duct | 0.8 | 50 | 50 | 1.046 |
| 2 | EUN-05050-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 50 | 50 | 1.264 |
| 3 | EUN-05050-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 50 | 50 | 1.490 |
| 4 | EUN-05050-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 50 | 50 | 1.824 |
| 5 | EUN-05050-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 50 | 50 | 2.362 |
| 6 | EUN-10050-080 | Normal Type Non-Perforated Perforated Cable Duct | 0.8 | 100 | 50 | 1.406 |
| 7 | EUN-10050-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 100 | 50 | 1.703 |
| 8 | EUN-10050-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 100 | 50 | 2.011 |
| 9 | EUN-10050-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 100 | 50 | 2.463 |
| 10 | EUN-10050-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 100 | 50 | 3.200 |
| 11 | EUN-15050-080 | Normal Type Non-Perforated Perforated Cable Duct | 0.8 | 150 | 50 | 1.767 |
| 12 | EUN-15050-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 150 | 50 | 2.142 |
| 13 | EUN-15050-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 150 | 50 | 2.532 |
| 14 | EUN-15050-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 150 | 50 | 3.101 |
| 15 | EUN-15050-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 150 | 50 | 4.039 |
| 16 | EUN-20050-080 | Normal Type Non-Perforated Perforated Cable Duct | 0.8 | 200 | 50 | 2.127 |
| 17 | EUN-20050-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 200 | 50 | 2.581 |
| 18 | EUN-20050-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 200 | 50 | 3.053 |
| 19 | EUN-20050-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 200 | 50 | 3.740 |
| 20 | EUN-20050-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 200 | 50 | 4.877 |
| 21 | EUN-25050-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 250 | 50 | 3.020 |
| 22 | EUN-25050-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 250 | 50 | 3.574 |
| 23 | EUN-25050-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 250 | 50 | 4.379 |
| 24 | EUN-25050-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 250 | 50 | 5.716 |
| 25 | EUN-30050-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 300 | 50 | 3.459 |
| 26 | EUN-30050-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 300 | 50 | 4.095 |
| 27 | EUN-30050-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 300 | 50 | 5.018 |
| 28 | EUN-30050-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 300 | 50 | 6.554 |
| 29 | EUN-40050-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 400 | 50 | 5.137 |
| 30 | EUN-40050-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 400 | 50 | 6.295 |
| 31 | EUN-40050-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 400 | 50 | 8.232 |
| 32 | EUN-50050-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 500 | 50 | 6.179 |
| 33 | EUN-50050-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 500 | 50 | 7.573 |
| 34 | EUN-50050-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 500 | 50 | 9.909 |
| 35 | EUN-60050-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 600 | 50 | 7.221 |
| 36 | EUN-60050-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 600 | 50 | 8.850 |
| 37 | EUN-60050-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 600 | 50 | 11.586 |

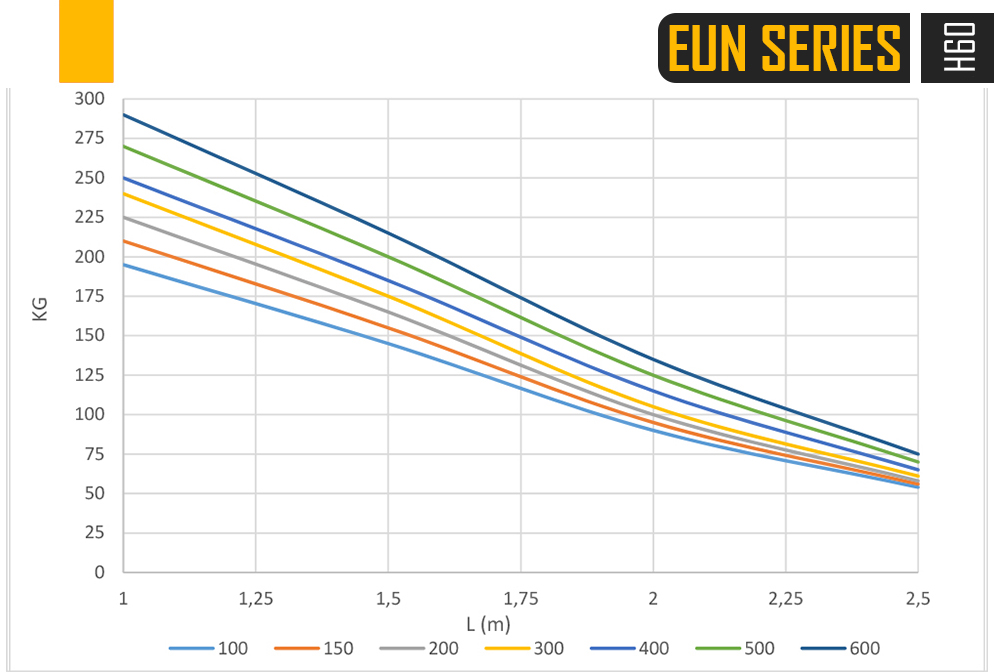

| # | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Weight (kg/m) |
| 1 | EUN-05060-080 | Normal Type Non-Perforated Perforated Cable Duct | 0.8 | 50 | 60 | 1.19 |
| 2 | EUN-05060-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 50 | 60 | 1.44 |
| 3 | EUN-05060-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 50 | 60 | 1.698 |
| 4 | EUN-05060-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 50 | 60 | 2.079 |
| 5 | EUN-05060-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 50 | 60 | 2.697 |
| 6 | EUN-10060-080 | Normal Type Non-Perforated Perforated Cable Duct | 0.8 | 100 | 60 | 1.551 |
| 7 | EUN-10060-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 100 | 60 | 1.879 |
| 8 | EUN-10060-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 100 | 60 | 2.219 |
| 9 | EUN-10060-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 100 | 60 | 2.718 |
| 10 | EUN-10060-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 100 | 60 | 3.536 |
| 11 | EUN-15060-080 | Normal Type Non-Perforated Perforated Cable Duct | 0.8 | 150 | 60 | 1.911 |
| 12 | EUN-15060-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 150 | 60 | 2.318 |
| 13 | EUN-15060-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 150 | 60 | 2.74 |
| 14 | EUN-15060-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 150 | 60 | 3.357 |
| 15 | EUN-15060-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 150 | 60 | 4.374 |
| 16 | EUN-20060-080 | Normal Type Non-Perforated Perforated Cable Duct | 0.8 | 200 | 60 | 2.264 |
| 17 | EUN-20060-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 200 | 60 | 2.757 |
| 18 | EUN-20060-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 200 | 60 | 3.261 |
| 19 | EUN-20060-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 200 | 60 | 3.996 |
| 20 | EUN-20060-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 200 | 60 | 5.213 |
| 21 | EUN-25060-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 250 | 60 | 3.187 |
| 22 | EUN-25060-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 250 | 60 | 3.782 |
| 23 | EUN-25060-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 250 | 60 | 4.634 |
| 24 | EUN-25060-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 250 | 60 | 6.051 |
| 25 | EUN-30060-100 | Normal Type Non-Perforated Perforated Cable Duct | 1.0 | 300 | 60 | 3.634 |
| 26 | EUN-30060-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 300 | 60 | 4.303 |
| 27 | EUN-30060-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 300 | 60 | 5.273 |
| 28 | EUN-30060-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 300 | 60 | 6.89 |
| 29 | EUN-40060-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 400 | 60 | 5.345 |
| 30 | EUN-40060-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 400 | 60 | 6.551 |
| 31 | EUN-40060-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 400 | 60 | 8.567 |
| 32 | EUN-50060-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 500 | 60 | 6.387 |
| 33 | EUN-50060-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 500 | 60 | 7.828 |
| 34 | EUN-50060-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 500 | 60 | 10.244 |
| 35 | EUN-60060-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 600 | 60 | 7.429 |
| 36 | EUN-60060-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 600 | 60 | 9.106 |
| 37 | EUN-60060-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 600 | 60 | 11.921 |

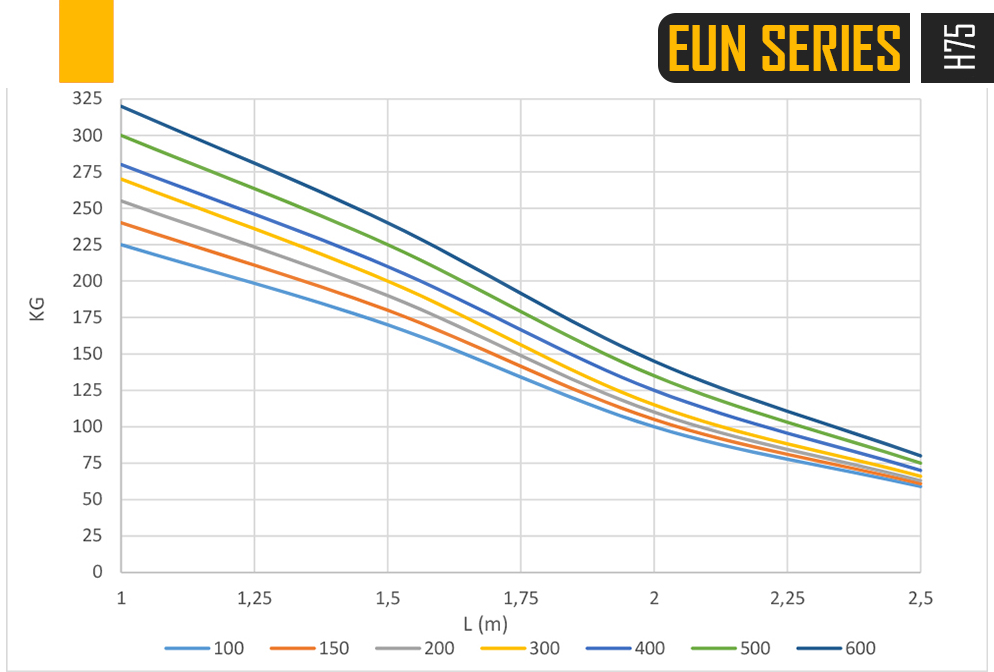

| # | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Weight (kg/m) |
| 1 | EUN-10075-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 100 | 75 | 2.521 |
| 2 | EUN-10075-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 100 | 75 | 3.085 |
| 3 | EUN-10075-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 100 | 75 | 4.018 |
| 4 | EUN-15075-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 150 | 75 | 3.042 |
| 5 | EUN-15075-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 150 | 75 | 3.724 |
| 6 | EUN-15075-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 150 | 75 | 4.857 |
| 7 | EUN-20075-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 200 | 75 | 3.563 |
| 8 | EUN-20075-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 200 | 75 | 4.363 |
| 9 | EUN-20075-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 200 | 75 | 5.696 |
| 10 | EUN-25075-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 250 | 75 | 4.084 |
| 11 | EUN-25075-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 250 | 75 | 5.001 |
| 12 | EUN-25075-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 250 | 75 | 6.534 |
| 13 | EUN-30075-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 300 | 75 | 4.605 |
| 14 | EUN-30075-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 300 | 75 | 5.640 |
| 15 | EUN-30075-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 300 | 75 | 7.373 |
| 16 | EUN-40075-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 400 | 75 | 5.647 |
| 17 | EUN-40075-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 400 | 75 | 6.918 |
| 18 | EUN-40075-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 400 | 75 | 9.050 |
| 19 | EUN-50075-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 500 | 75 | 6.689 |
| 20 | EUN-50075-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 500 | 75 | 8.195 |
| 21 | EUN-50075-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 500 | 75 | 10.727 |
| 22 | EUN-60075-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 600 | 75 | 7.731 |
| 23 | EUN-60075-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 600 | 75 | 9.473 |
| 24 | EUN-60075-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 600 | 75 | 12.404 |
| # | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Weight (kg/m) |
| 1 | EUN-100100-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 100 | 100 | 3.042 |
| 2 | EUN-100100-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 100 | 100 | 3.724 |
| 3 | EUN-100100-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 100 | 100 | 4.857 |
| 4 | EUN-150100-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 150 | 100 | 3.587 |
| 5 | EUN-150100-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 150 | 100 | 4.387 |
| 6 | EUN-150100-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 150 | 100 | 5.696 |
| 7 | EUN-200100-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 200 | 100 | 4.084 |
| 8 | EUN-200100-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 200 | 100 | 5.001 |
| 9 | EUN-200100-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 200 | 100 | 6.534 |
| 10 | EUN-250100-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 250 | 100 | 4.605 |
| 11 | EUN-250100-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 250 | 100 | 5.640 |
| 12 | EUN-250100-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 250 | 100 | 7.373 |
| 13 | EUN-300100-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 300 | 100 | 5.126 |
| 14 | EUN-300100-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 300 | 100 | 6.279 |
| 15 | EUN-300100-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 300 | 100 | 8.211 |
| 16 | EUN-400100-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 400 | 100 | 6.168 |
| 17 | EUN-400100-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 400 | 100 | 7.556 |
| 18 | EUN-400100-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 400 | 100 | 9.888 |
| 19 | EUN-500100-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 500 | 100 | 7.210 |
| 20 | EUN-500100-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 500 | 100 | 8.834 |
| 21 | EUN-500100-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 500 | 100 | 11.565 |
| 22 | EUN-600100-120 | Normal Type Non-Perforated Perforated Cable Duct | 1.2 | 600 | 100 | 8.252 |
| 23 | EUN-600100-150 | Normal Type Non-Perforated Perforated Cable Duct | 1.5 | 600 | 100 | 10.111 |
| 24 | EUN-600100-200 | Normal Type Non-Perforated Perforated Cable Duct | 2.0 | 600 | 100 | 13.243 |
*Hot Dip Galvanizing (TS EN ISO 1461)
- Material weights are approximate values, may vary ± 10%.
- The table is based on the weights of products coated with hot dip galvanizing.
- Standard lengths are 2500 mm and 3000 mm.
- For detailed information and special size orders, please contact your customer representative.
