| Type | : Standard Type |
| Feature | : Low cost achieved by using appropriate raw materials |
| Code | : EKO |
| Advantages | : Wide Range of Use |
| Thickness | : 0,80 – 2,00 mm |
| Width | : 50-600 mm |
CoatIng Types
Technıcal Tables

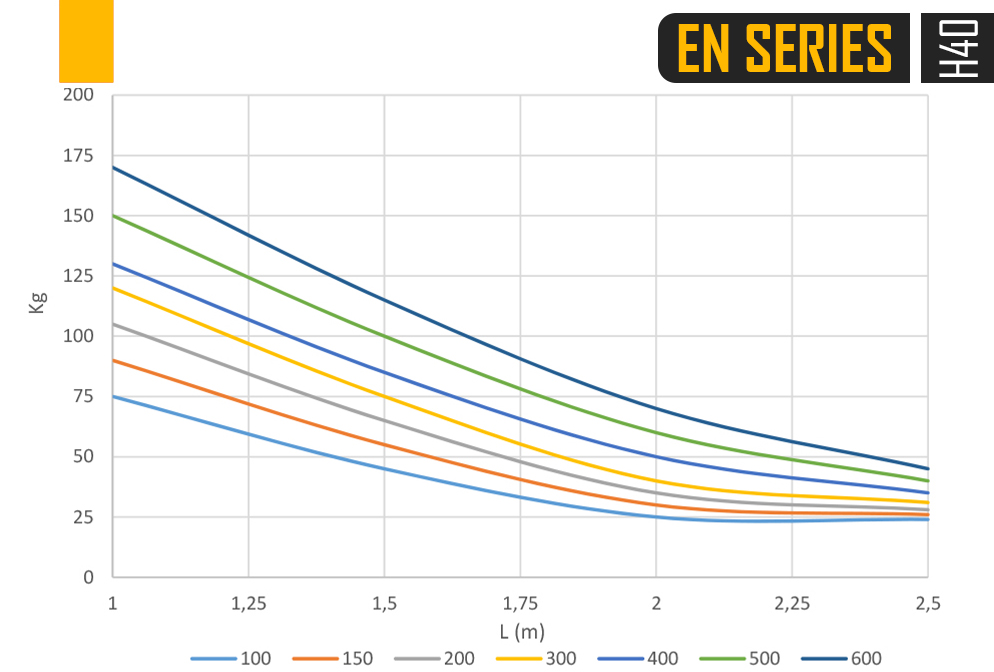

| # | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Weight (kg/m) |
| 1 | EN-05040-080 | Normal Type Perforated Cable Duct | 0.8 | 50 | 40 | 0.766 |
| 2 | EN-05040-100 | Normal Type Perforated Cable Duct | 1.0 | 50 | 40 | 0.924 |
| 3 | EN-05040-120 | Normal Type Perforated Cable Duct | 1.2 | 50 | 40 | 1.086 |
| 4 | EN-05040-150 | Normal Type Perforated Cable Duct | 1.5 | 50 | 40 | 1.332 |
| 5 | EN-05040-200 | Normal Type Perforated Cable Duct | 2.0 | 50 | 40 | 1.714 |
| 6 | EN-10040-080 | Normal Type Perforated Cable Duct | 0.8 | 100 | 40 | 1.051 |
| 7 | EN-10040-100 | Normal Type Perforated Cable Duct | 1.0 | 100 | 40 | 1.272 |
| 8 | EN-10040-120 | Normal Type Perforated Cable Duct | 1.2 | 100 | 40 | 1.498 |
| 9 | EN-10040-150 | Normal Type Perforated Cable Duct | 1.5 | 100 | 40 | 1.834 |
| 10 | EN-10040-200 | Normal Type Perforated Cable Duct | 2.0 | 100 | 40 | 2.378 |
| 11 | EN-15040-080 | Normal Type Perforated Cable Duct | 0.8 | 150 | 40 | 1.333 |
| 12 | EN-15040-100 | Normal Type Perforated Cable Duct | 1.0 | 150 | 40 | 1.614 |
| 13 | EN-15040-120 | Normal Type Perforated Cable Duct | 1.2 | 150 | 40 | 1.906 |
| 14 | EN-15040-150 | Normal Type Perforated Cable Duct | 1.5 | 150 | 40 | 2.337 |
| 15 | EN-15040-200 | Normal Type Perforated Cable Duct | 2.0 | 150 | 40 | 3.034 |
| 16 | EN-20040-080 | Normal Type Perforated Cable Duct | 0.8 | 200 | 40 | 1.626 |
| 17 | EN-20040-100 | Normal Type Perforated Cable Duct | 1.0 | 200 | 40 | 1.972 |
| 18 | EN-20040-120 | Normal Type Perforated Cable Duct | 1.2 | 200 | 40 | 2.33 |
| 19 | EN-20040-150 | Normal Type Perforated Cable Duct | 1.5 | 200 | 40 | 2.856 |
| 20 | EN-20040-200 | Normal Type Perforated Cable Duct | 2.0 | 200 | 40 | 3.715 |
| 21 | EN-25040-100 | Normal Type Perforated Cable Duct | 1.0 | 250 | 40 | 2.181 |
| 22 | EN-25040-120 | Normal Type Perforated Cable Duct | 1.2 | 250 | 40 | 2.579 |
| 23 | EN-25040-150 | Normal Type Perforated Cable Duct | 1.5 | 250 | 40 | 3.161 |
| 24 | EN-25040-200 | Normal Type Perforated Cable Duct | 2.0 | 250 | 40 | 4.116 |
| 25 | EN-30040-100 | Normal Type Perforated Cable Duct | 1.0 | 300 | 40 | 2.739 |
| 26 | EN-30040-120 | Normal Type Perforated Cable Duct | 1.2 | 300 | 40 | 3.241 |
| 27 | EN-30040-150 | Normal Type Perforated Cable Duct | 1.5 | 300 | 40 | 4.005 |
| 28 | EN-30040-200 | Normal Type Perforated Cable Duct | 2.0 | 300 | 40 | 5.181 |
| 29 | EN-40040-120 | Normal Type Perforated Cable Duct | 1.2 | 400 | 40 | 4.176 |
| 30 | EN-40040-150 | Normal Type Perforated Cable Duct | 1.5 | 400 | 40 | 5.121 |
| 31 | EN-40040-200 | Normal Type Perforated Cable Duct | 2.0 | 400 | 40 | 6.688 |
| 32 | EN-50040-120 | Normal Type Perforated Cable Duct | 1.2 | 500 | 40 | 4.982 |
| 33 | EN-50040-150 | Normal Type Perforated Cable Duct | 1.5 | 500 | 40 | 6.107 |
| 34 | EN-50040-200 | Normal Type Perforated Cable Duct | 2.0 | 500 | 40 | 7.984 |
| 35 | EN-60040-120 | Normal Type Perforated Cable Duct | 1.2 | 600 | 40 | 5.919 |
| 36 | EN-60040-150 | Normal Type Perforated Cable Duct | 1.5 | 600 | 40 | 7.256 |
| 37 | EN-60040-200 | Normal Type Perforated Cable Duct | 2.0 | 600 | 40 | 9.492 |

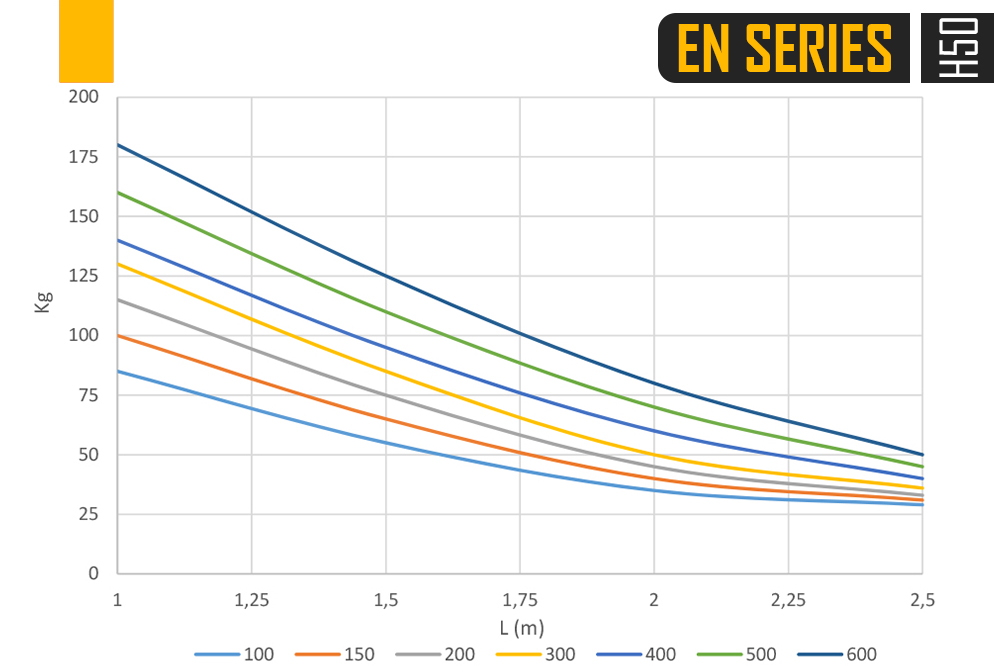

| # | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Weight (kg/m) |
| 1 | EN-05050-080 | Normal Type Perforated Cable Duct | 0.8 | 50 | 50 | 0.911 |
| 2 | EN-05050-100 | Normal Type Perforated Cable Duct | 1.0 | 50 | 50 | 1.100 |
| 3 | EN-05050-120 | Normal Type Perforated Cable Duct | 1.2 | 50 | 50 | 1.294 |
| 4 | EN-05050-150 | Normal Type Perforated Cable Duct | 1.5 | 50 | 50 | 1.587 |
| 5 | EN-05050-200 | Normal Type Perforated Cable Duct | 2.0 | 50 | 50 | 2.050 |
| 6 | EN-10050-080 | Normal Type Perforated Cable Duct | 0.8 | 100 | 50 | 1.195 |
| 7 | EN-10050-100 | Normal Type Perforated Cable Duct | 1.0 | 100 | 50 | 1.447 |
| 8 | EN-10050-120 | Normal Type Perforated Cable Duct | 1.2 | 100 | 50 | 1.707 |
| 9 | EN-10050-150 | Normal Type Perforated Cable Duct | 1.5 | 100 | 50 | 2.089 |
| 10 | EN-10050-200 | Normal Type Perforated Cable Duct | 2.0 | 100 | 50 | 2.713 |
| 11 | EN-15050-080 | Normal Type Perforated Cable Duct | 0.8 | 150 | 50 | 1.478 |
| 12 | EN-15050-100 | Normal Type Perforated Cable Duct | 1.0 | 150 | 50 | 1.790 |
| 13 | EN-15050-120 | Normal Type Perforated Cable Duct | 1.2 | 150 | 50 | 2.115 |
| 14 | EN-15050-150 | Normal Type Perforated Cable Duct | 1.5 | 150 | 50 | 2.592 |
| 15 | EN-15050-200 | Normal Type Perforated Cable Duct | 2.0 | 150 | 50 | 3.369 |
| 16 | EN-20050-080 | Normal Type Perforated Cable Duct | 0.8 | 200 | 50 | 1.770 |
| 17 | EN-20050-100 | Normal Type Perforated Cable Duct | 1.0 | 200 | 50 | 2.147 |
| 18 | EN-20050-120 | Normal Type Perforated Cable Duct | 1.2 | 200 | 50 | 2.539 |
| 19 | EN-20050-150 | Normal Type Perforated Cable Duct | 1.5 | 200 | 50 | 3.112 |
| 20 | EN-20050-200 | Normal Type Perforated Cable Duct | 2.0 | 200 | 50 | 4.051 |
| 21 | EN-25050-100 | Normal Type Perforated Cable Duct | 1.0 | 250 | 50 | 2.357 |
| 22 | EN-25050-120 | Normal Type Perforated Cable Duct | 1.2 | 250 | 50 | 2.787 |
| 23 | EN-25050-150 | Normal Type Perforated Cable Duct | 1.5 | 250 | 50 | 3.416 |
| 24 | EN-25050-200 | Normal Type Perforated Cable Duct | 2.0 | 250 | 50 | 4.451 |
| 25 | EN-30050-100 | Normal Type Perforated Cable Duct | 1.0 | 300 | 50 | 2.914 |
| 26 | EN-30050-120 | Normal Type Perforated Cable Duct | 1.2 | 300 | 50 | 3.449 |
| 27 | EN-30050-150 | Normal Type Perforated Cable Duct | 1.5 | 300 | 50 | 4.260 |
| 28 | EN-30050-200 | Normal Type Perforated Cable Duct | 2.0 | 300 | 50 | 5.516 |
| 29 | EN-40050-120 | Normal Type Perforated Cable Duct | 1.2 | 400 | 50 | 4.385 |
| 30 | EN-40050-150 | Normal Type Perforated Cable Duct | 1.5 | 400 | 50 | 5.376 |
| 31 | EN-40050-200 | Normal Type Perforated Cable Duct | 2.0 | 400 | 50 | 7.023 |
| 32 | EN-50050-120 | Normal Type Perforated Cable Duct | 1.2 | 500 | 50 | 5.190 |
| 33 | EN-50050-150 | Normal Type Perforated Cable Duct | 1.5 | 500 | 50 | 6.363 |
| 34 | EN-50050-200 | Normal Type Perforated Cable Duct | 2.0 | 500 | 50 | 8.319 |
| 35 | EN-60050-120 | Normal Type Perforated Cable Duct | 1.2 | 600 | 50 | 6.127 |
| 36 | EN-60050-150 | Normal Type Perforated Cable Duct | 1.5 | 600 | 50 | 7.511 |
| 37 | EN-60050-200 | Normal Type Perforated Cable Duct | 2.0 | 600 | 50 | 9.827 |

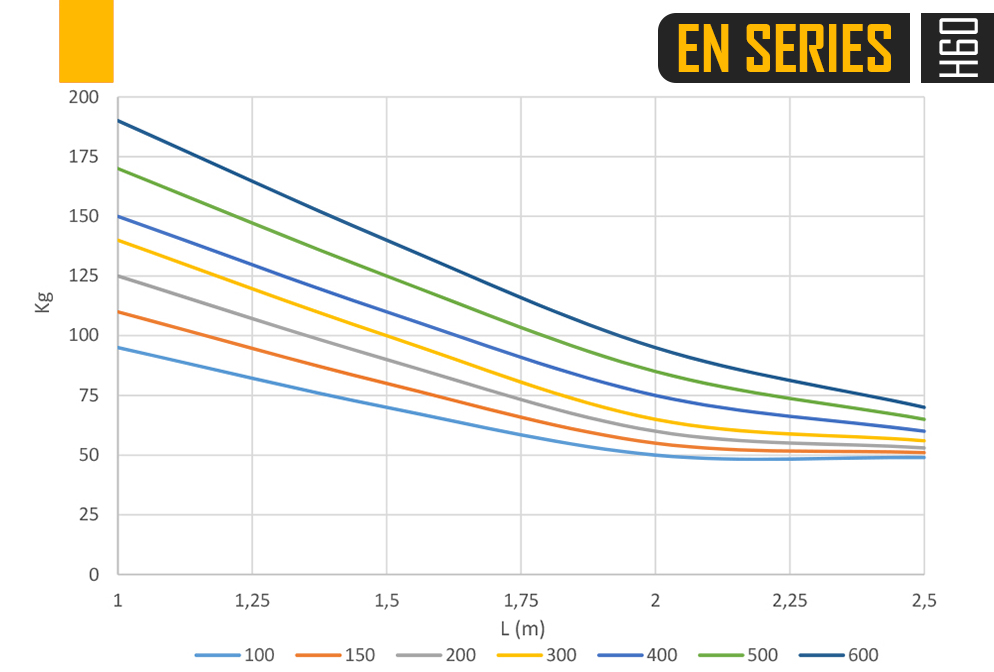

| # | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Weight (kg/m) |
| 1 | EN-05060-080 | Normal Type Perforated Cable Duct | 0.8 | 50 | 60 | 1.055 |
| 2 | EN-05060-100 | Normal Type Perforated Cable Duct | 1.0 | 50 | 60 | 1.276 |
| 3 | EN-05060-120 | Normal Type Perforated Cable Duct | 1.2 | 50 | 60 | 1.503 |
| 4 | EN-05060-150 | Normal Type Perforated Cable Duct | 1.5 | 50 | 60 | 1.843 |
| 5 | EN-05060-200 | Normal Type Perforated Cable Duct | 2.0 | 50 | 60 | 2.385 |
| 6 | EN-10060-080 | Normal Type Perforated Cable Duct | 0.8 | 100 | 60 | 1.339 |
| 7 | EN-10060-100 | Normal Type Perforated Cable Duct | 1.0 | 100 | 60 | 1.623 |
| 8 | EN-10060-120 | Normal Type Perforated Cable Duct | 1.2 | 100 | 60 | 1.915 |
| 9 | EN-10060-150 | Normal Type Perforated Cable Duct | 1.5 | 100 | 60 | 2.345 |
| 10 | EN-10060-200 | Normal Type Perforated Cable Duct | 2.0 | 100 | 60 | 3.049 |
| 11 | EN-15060-080 | Normal Type Perforated Cable Duct | 0.8 | 150 | 60 | 1.622 |
| 12 | EN-15060-100 | Normal Type Perforated Cable Duct | 1.0 | 150 | 60 | 1.965 |
| 13 | EN-15060-120 | Normal Type Perforated Cable Duct | 1.2 | 150 | 60 | 2.323 |
| 14 | EN-15060-150 | Normal Type Perforated Cable Duct | 1.5 | 150 | 60 | 2.848 |
| 15 | EN-15060-200 | Normal Type Perforated Cable Duct | 2.0 | 150 | 60 | 3.704 |
| 16 | EN-20060-080 | Normal Type Perforated Cable Duct | 0.8 | 200 | 60 | 1.907 |
| 17 | EN-20060-100 | Normal Type Perforated Cable Duct | 1.0 | 200 | 60 | 2.323 |
| 18 | EN-20060-120 | Normal Type Perforated Cable Duct | 1.2 | 200 | 60 | 2.747 |
| 19 | EN-20060-150 | Normal Type Perforated Cable Duct | 1.5 | 200 | 60 | 3.367 |
| 20 | EN-20060-200 | Normal Type Perforated Cable Duct | 2.0 | 200 | 60 | 4.386 |
| 21 | EN-25060-100 | Normal Type Perforated Cable Duct | 1.0 | 250 | 60 | 2.524 |
| 22 | EN-25060-120 | Normal Type Perforated Cable Duct | 1.2 | 250 | 60 | 2.996 |
| 23 | EN-25060-150 | Normal Type Perforated Cable Duct | 1.5 | 250 | 60 | 3.672 |
| 24 | EN-25060-200 | Normal Type Perforated Cable Duct | 2.0 | 250 | 60 | 4.787 |
| 25 | EN-30060-100 | Normal Type Perforated Cable Duct | 1.0 | 300 | 60 | 3.09 |
| 26 | EN-30060-120 | Normal Type Perforated Cable Duct | 1.2 | 300 | 60 | 3.657 |
| 27 | EN-30060-150 | Normal Type Perforated Cable Duct | 1.5 | 300 | 60 | 4.516 |
| 28 | EN-30060-200 | Normal Type Perforated Cable Duct | 2.0 | 300 | 60 | 5.852 |
| 29 | EN-40060-120 | Normal Type Perforated Cable Duct | 1.2 | 400 | 60 | 4.593 |
| 30 | EN-40060-150 | Normal Type Perforated Cable Duct | 1.5 | 400 | 60 | 5.632 |
| 31 | EN-40060-200 | Normal Type Perforated Cable Duct | 2.0 | 400 | 60 | 7.359 |
| 32 | EN-50060-120 | Normal Type Perforated Cable Duct | 1.2 | 500 | 60 | 5.398 |
| 33 | EN-50060-150 | Normal Type Perforated Cable Duct | 1.5 | 500 | 60 | 6.618 |
| 34 | EN-50060-200 | Normal Type Perforated Cable Duct | 2.0 | 500 | 60 | 8.655 |
| 35 | EN-60060-120 | Normal Type Perforated Cable Duct | 1.2 | 600 | 60 | 6.335 |
| 36 | EN-60060-150 | Normal Type Perforated Cable Duct | 1.5 | 600 | 60 | 7.767 |
| 37 | EN-60060-200 | Normal Type Perforated Cable Duct | 2.0 | 600 | 60 | 10.163 |

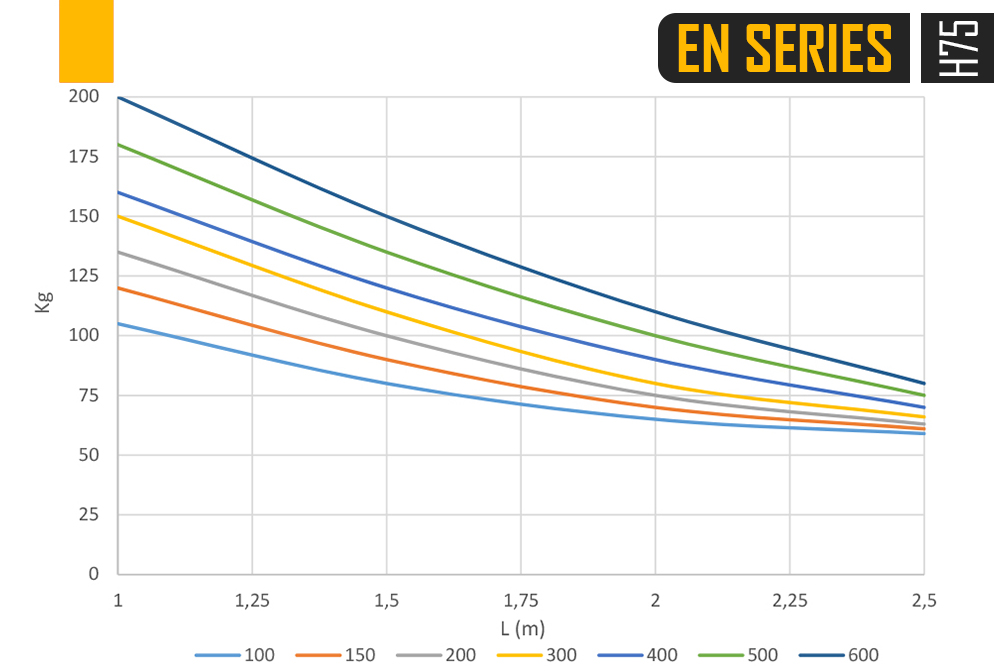

| # | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Weight (kg/m) |
| 1 | EN-10075-120 | Normal Type Perforated Cable Duct | 1.2 | 100 | 75 | 2.146 |
| 2 | EN-10075-150 | Normal Type Perforated Cable Duct | 1.5 | 100 | 75 | 2.632 |
| 3 | EN-10075-200 | Normal Type Perforated Cable Duct | 2.0 | 100 | 75 | 3.420 |
| 4 | EN-15075-120 | Normal Type Perforated Cable Duct | 1.2 | 150 | 75 | 2.563 |
| 5 | EN-15075-150 | Normal Type Perforated Cable Duct | 1.5 | 150 | 75 | 3.143 |
| 6 | EN-15075-200 | Normal Type Perforated Cable Duct | 2.0 | 150 | 75 | 4.092 |
| 7 | EN-20075-120 | Normal Type Perforated Cable Duct | 1.2 | 200 | 75 | 2.980 |
| 8 | EN-20075-150 | Normal Type Perforated Cable Duct | 1.5 | 200 | 75 | 3.653 |
| 9 | EN-20075-200 | Normal Type Perforated Cable Duct | 2.0 | 200 | 75 | 4.762 |
| 10 | EN-25075-120 | Normal Type Perforated Cable Duct | 1.2 | 250 | 75 | 3.501 |
| 11 | EN-25075-150 | Normal Type Perforated Cable Duct | 1.5 | 250 | 75 | 4.292 |
| 12 | EN-25075-200 | Normal Type Perforated Cable Duct | 2.0 | 250 | 75 | 5.601 |
| 13 | EN-30075-120 | Normal Type Perforated Cable Duct | 1.2 | 300 | 75 | 3.919 |
| 14 | EN-30075-150 | Normal Type Perforated Cable Duct | 1.5 | 300 | 75 | 4.804 |
| 15 | EN-30075-200 | Normal Type Perforated Cable Duct | 2.0 | 300 | 75 | 6.272 |
| 16 | EN-40075-120 | Normal Type Perforated Cable Duct | 1.2 | 400 | 75 | 4.753 |
| 17 | EN-40075-150 | Normal Type Perforated Cable Duct | 1.5 | 400 | 75 | 5.827 |
| 18 | EN-40075-200 | Normal Type Perforated Cable Duct | 2.0 | 400 | 75 | 7.616 |
| 19 | EN-50075-120 | Normal Type Perforated Cable Duct | 1.2 | 500 | 75 | 5.588 |
| 20 | EN-50075-150 | Normal Type Perforated Cable Duct | 1.5 | 500 | 75 | 6.851 |
| 21 | EN-50075-200 | Normal Type Perforated Cable Duct | 2.0 | 500 | 75 | 8.960 |
| 22 | EN-60075-120 | Normal Type Perforated Cable Duct | 1.2 | 600 | 75 | 6.423 |
| 23 | EN-60075-150 | Normal Type Perforated Cable Duct | 1.5 | 600 | 75 | 7.874 |
| 24 | EN-60075-200 | Normal Type Perforated Cable Duct | 2.0 | 600 | 75 | 10.304 |

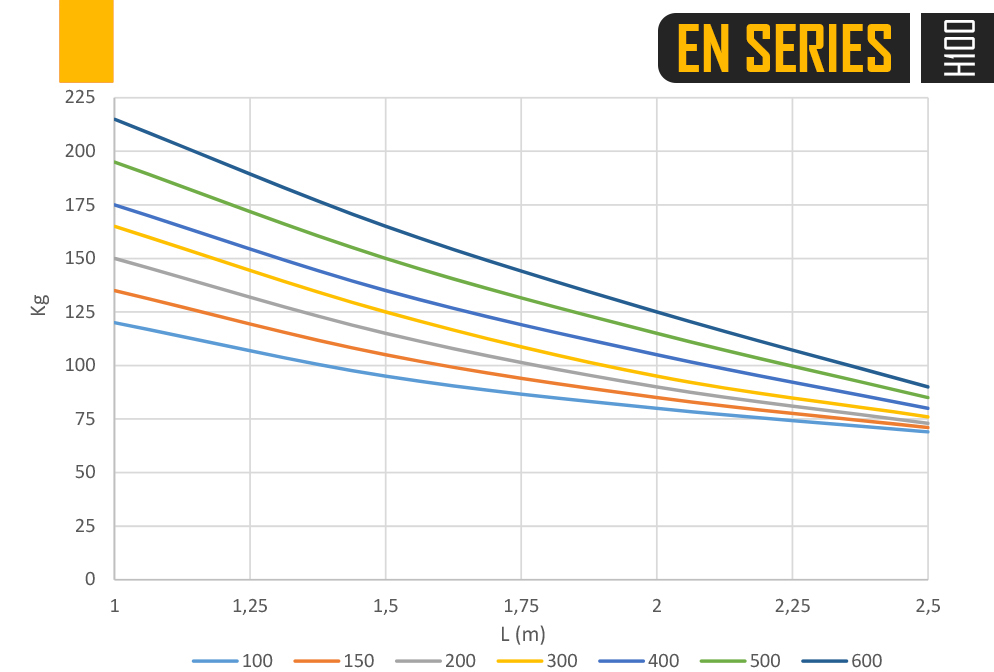

| # | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Weight (kg/m) |
| 1 | EN-100100-120 | Normal Type Perforated Cable Duct | 1.2 | 100 | 100 | 2.644 |
| 2 | EN-100100-150 | Normal Type Perforated Cable Duct | 1.5 | 100 | 100 | 3.241 |
| 3 | EN-100100-200 | Normal Type Perforated Cable Duct | 2.0 | 100 | 100 | 4.220 |
| 4 | EN-150100-120 | Normal Type Perforated Cable Duct | 1.2 | 150 | 100 | 3.073 |
| 5 | EN-150100-150 | Normal Type Perforated Cable Duct | 1.5 | 150 | 100 | 3.762 |
| 6 | EN-150100-200 | Normal Type Perforated Cable Duct | 2.0 | 150 | 100 | 4.877 |
| 7 | EN-200100-120 | Normal Type Perforated Cable Duct | 1.2 | 200 | 100 | 3.474 |
| 8 | EN-200100-150 | Normal Type Perforated Cable Duct | 1.5 | 200 | 100 | 4.260 |
| 9 | EN-200100-200 | Normal Type Perforated Cable Duct | 2.0 | 200 | 100 | 5.559 |
| 10 | EN-250100-120 | Normal Type Perforated Cable Duct | 1.2 | 250 | 100 | 3.729 |
| 11 | EN-250100-150 | Normal Type Perforated Cable Duct | 1.5 | 250 | 100 | 4.571 |
| 12 | EN-250100-200 | Normal Type Perforated Cable Duct | 2.0 | 250 | 100 | 5.968 |
| 13 | EN-300100-120 | Normal Type Perforated Cable Duct | 1.2 | 300 | 100 | 4.385 |
| 14 | EN-300100-150 | Normal Type Perforated Cable Duct | 1.5 | 300 | 100 | 5.376 |
| 15 | EN-300100-200 | Normal Type Perforated Cable Duct | 2.0 | 300 | 100 | 7.023 |
| 16 | EN-400100-120 | Normal Type Perforated Cable Duct | 1.2 | 400 | 100 | 5.322 |
| 17 | EN-400100-150 | Normal Type Perforated Cable Duct | 1.5 | 400 | 100 | 6.525 |
| 18 | EN-400100-200 | Normal Type Perforated Cable Duct | 2.0 | 400 | 100 | 8.532 |
| 19 | EN-500100-120 | Normal Type Perforated Cable Duct | 1.2 | 500 | 100 | 6.127 |
| 20 | EN-500100-150 | Normal Type Perforated Cable Duct | 1.5 | 500 | 100 | 7.511 |
| 21 | EN-500100-200 | Normal Type Perforated Cable Duct | 2.0 | 500 | 100 | 9.827 |
| 22 | EN-600100-120 | Normal Type Perforated Cable Duct | 1.2 | 600 | 100 | 7.064 |
| 23 | EN-600100-150 | Normal Type Perforated Cable Duct | 1.5 | 600 | 100 | 8.660 |
| 24 | EN-600100-200 | Normal Type Perforated Cable Duct | 2.0 | 600 | 100 | 11.335 |
*Hot Dip Galvanizing (TS EN ISO 1461)
- Material weights are approximate values, may vary ± 10%.
- The table is based on the weights of products coated with hot dip galvanizing.
- Standard lengths are 2500 mm and 3000 mm.
- For detailed information and special size orders, please contact your customer representative.
