| Type | : Heavy Duty |
| Feature | : Design accepted in many areas of the industry |
| Code | : EL |
| Advantages | : Cost |
| Thickness | : 0,80 – 2,00 mm |
| Width | : 50-900 mm |
CoatIng Types
Technıcal Tables

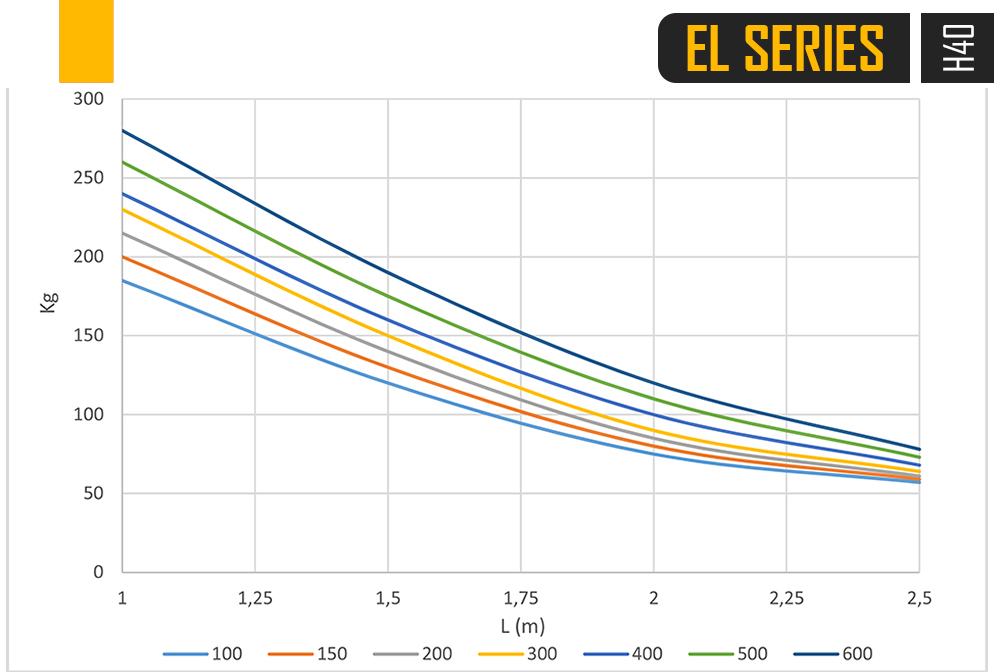

| # | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Weight (kg/m) |
| 1 | EL-10040-150 | Heavy Duty Cable Ladders | 1.5 | 100 | 40 | 2.119 |
| 2 | EL-10040-200 | Heavy Duty Cable Ladders | 2.0 | 100 | 40 | 2.695 |
| 3 | EL-15040-150 | Heavy Duty Cable Ladders | 1.5 | 150 | 40 | 2.272 |
| 4 | EL-15040-200 | Heavy Duty Cable Ladders | 2.0 | 150 | 40 | 2.849 |
| 5 | EL-20040-150 | Heavy Duty Cable Ladders | 1.5 | 200 | 40 | 2.426 |
| 6 | EL-20040-200 | Heavy Duty Cable Ladders | 2.0 | 200 | 40 | 3.003 |
| 7 | EL-25040-150 | Heavy Duty Cable Ladders | 1.5 | 250 | 40 | 2.579 |
| 8 | EL-25040-200 | Heavy Duty Cable Ladders | 2.0 | 250 | 40 | 3.157 |
| 9 | EL-30040-150 | Heavy Duty Cable Ladders | 1.5 | 300 | 40 | 2.732 |
| 10 | EL-30040-200 | Heavy Duty Cable Ladders | 2.0 | 300 | 40 | 3.311 |
| 11 | EL-40040-150 | Heavy Duty Cable Ladders | 1.5 | 400 | 40 | 3.038 |
| 12 | EL-40040-200 | Heavy Duty Cable Ladders | 2.0 | 400 | 40 | 3.619 |
| 13 | EL-45040-150 | Heavy Duty Cable Ladders | 1.5 | 450 | 40 | 3.195 |
| 14 | EL-45040-200 | Heavy Duty Cable Ladders | 2.0 | 450 | 40 | 3.776 |
| 15 | EL-50040-150 | Heavy Duty Cable Ladders | 1.5 | 500 | 40 | 3.345 |
| 16 | EL-50040-200 | Heavy Duty Cable Ladders | 2.0 | 500 | 40 | 3.927 |
| 17 | EL-60040-150 | Heavy Duty Cable Ladders | 1.5 | 600 | 40 | 3.651 |
| 18 | EL-60040-200 | Heavy Duty Cable Ladders | 2.0 | 600 | 40 | 4.235 |
| 19 | EL-75040-150 | Heavy Duty Cable Laddersi | 1.5 | 750 | 40 | 4.114 |
| 20 | EL-75040-200 | Heavy Duty Cable Ladders | 2.0 | 750 | 40 | 4.700 |
| 21 | EL-90040-150 | Heavy Duty Cable Ladders | 1.5 | 900 | 40 | 4.577 |
| 22 | EL-90040-200 | Heavy Duty Cable Ladders | 2.0 | 900 | 40 | 5.166 |

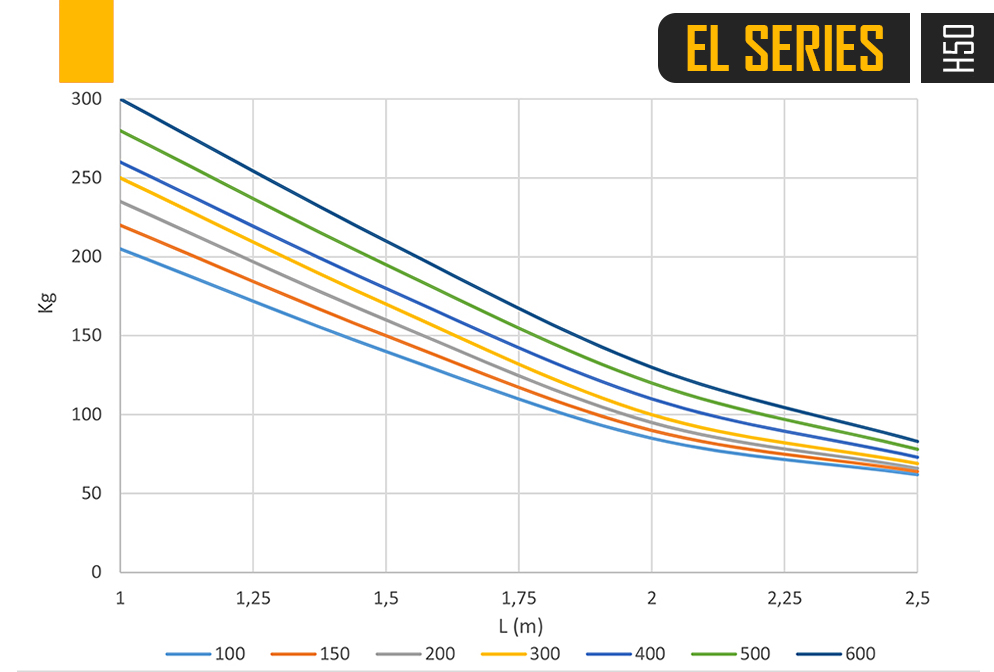

| # | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Weight (kg/m) |
| 1 | EL-10050-150 | Heavy Duty Cable Ladders | 1.5 | 100 | 50 | 2.375 |
| 2 | EL-10050-200 | Heavy Duty Cable Ladders | 2.0 | 100 | 50 | 3.030 |
| 3 | EL-15050-150 | Heavy Duty Cable Ladders | 1.5 | 150 | 50 | 2.528 |
| 4 | EL-15050-200 | Heavy Duty Cable Ladders | 2.0 | 150 | 50 | 3.184 |
| 5 | EL-20050-150 | Heavy Duty Cable Ladders | 1.5 | 200 | 50 | 2.681 |
| 6 | EL-20050-200 | Heavy Duty Cable Ladders | 2.0 | 200 | 50 | 3.338 |
| 7 | EL-25050-150 | Heavy Duty Cable Ladders | 1.5 | 250 | 50 | 2.834 |
| 8 | EL-25050-200 | Heavy Duty Cable Ladders | 2.0 | 250 | 50 | 3.492 |
| 9 | EL-30050-150 | Heavy Duty Cable Ladders | 1.5 | 300 | 50 | 2.987 |
| 10 | EL-30050-200 | Heavy Duty Cable Ladders | 2.0 | 300 | 50 | 3.646 |
| 11 | EL-40050-150 | Heavy Duty Cable Ladders | 1.5 | 400 | 50 | 3.294 |
| 12 | EL-40050-200 | Heavy Duty Cable Ladders | 2.0 | 400 | 50 | 3.955 |
| 13 | EL-45050-150 | Heavy Duty Cable Ladders | 1.5 | 450 | 50 | 3.450 |
| 14 | EL-45050-200 | Heavy Duty Cable Ladders | 2.0 | 450 | 50 | 4.112 |
| 15 | EL-50050-150 | Heavy Duty Cable Ladders | 1.5 | 500 | 50 | 3.600 |
| 16 | EL-50050-200 | Heavy Duty Cable Ladders | 2.0 | 500 | 50 | 4.263 |
| 17 | EL-60050-150 | Heavy Duty Cable Ladders | 1.5 | 600 | 50 | 3.907 |
| 18 | EL-60050-200 | Heavy Duty Cable Ladders | 2.0 | 600 | 50 | 4.571 |
| 19 | EL-75050-150 | Heavy Duty Cable Ladders | 1.5 | 750 | 50 | 4.369 |
| 20 | EL-75050-200 | Heavy Duty Cable Ladders | 2.0 | 750 | 50 | 5.036 |
| 21 | EL-90050-150 | Heavy Duty Cable Ladders | 1.5 | 900 | 50 | 4.832 |
| 22 | EL-90050-200 | Heavy Duty Cable Ladders | 2.0 | 900 | 50 | 5.501 |

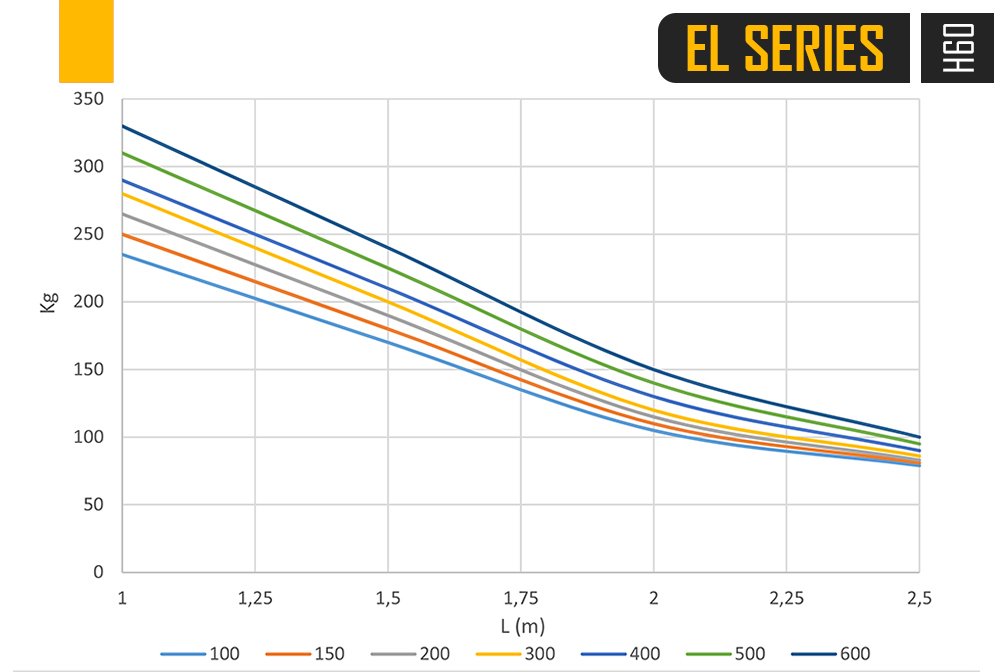

| # | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Weight (kg/m) |
| 1 | EL-10060-150 | Heavy Duty Cable Ladders | 1.5 | 100 | 60 | 2.630 |
| 2 | EL-10060-200 | Heavy Duty Cable Ladders | 2.0 | 100 | 60 | 3.366 |
| 3 | EL-15060-150 | Heavy Duty Cable Ladders | 1.5 | 150 | 60 | 2.783 |
| 4 | EL-15060-200 | Heavy Duty Cable Ladders | 2.0 | 150 | 60 | 3.520 |
| 5 | EL-20060-150 | Heavy Duty Cable Ladders | 1.5 | 200 | 60 | 2.937 |
| 6 | EL-20060-200 | Heavy Duty Cable Ladders | 2.0 | 200 | 60 | 3.674 |
| 7 | EL-25060-150 | Heavy Duty Cable Ladders | 1.5 | 250 | 60 | 3.090 |
| 8 | EL-25060-200 | Heavy Duty Cable Ladders | 2.0 | 250 | 60 | 3.828 |
| 9 | EL-30060-150 | Heavy Duty Cable Ladders | 1.5 | 300 | 60 | 3.243 |
| 10 | EL-30060-200 | Heavy Duty Cable Ladders | 2.0 | 300 | 60 | 3.982 |
| 11 | EL-40060-150 | Heavy Duty Cable Ladders | 1.5 | 400 | 60 | 3.549 |
| 12 | EL-40060-200 | Heavy Duty Cable Ladders | 2.0 | 400 | 60 | 4.290 |
| 13 | EL-45060-150 | Heavy Duty Cable Ladders | 1.5 | 450 | 60 | 3.706 |
| 14 | EL-45060-200 | Heavy Duty Cable Ladders | 2.0 | 450 | 60 | 4.447 |
| 15 | EL-50060-150 | Heavy Duty Cable Ladders | 1.5 | 500 | 60 | 3.856 |
| 16 | EL-50060-200 | Heavy Duty Cable Ladders | 2.0 | 500 | 60 | 4.598 |
| 17 | EL-60060-150 | Heavy Duty Cable Ladders | 1.5 | 600 | 60 | 4.162 |
| 18 | EL-60060-200 | Heavy Duty Cable Ladders | 2.0 | 600 | 60 | 4.906 |
| 19 | EL-75060-150 | Heavy Duty Cable Ladders | 1.5 | 750 | 60 | 4.625 |
| 20 | EL-75060-200 | Heavy Duty Cable Ladders | 2.0 | 750 | 60 | 5.372 |
| 21 | EL-90060-150 | Heavy Duty Cable Ladders | 1.5 | 900 | 60 | 5.088 |
| 22 | EL-90060-200 | Heavy Duty Cable Ladders | 2.0 | 900 | 60 | 5.837 |

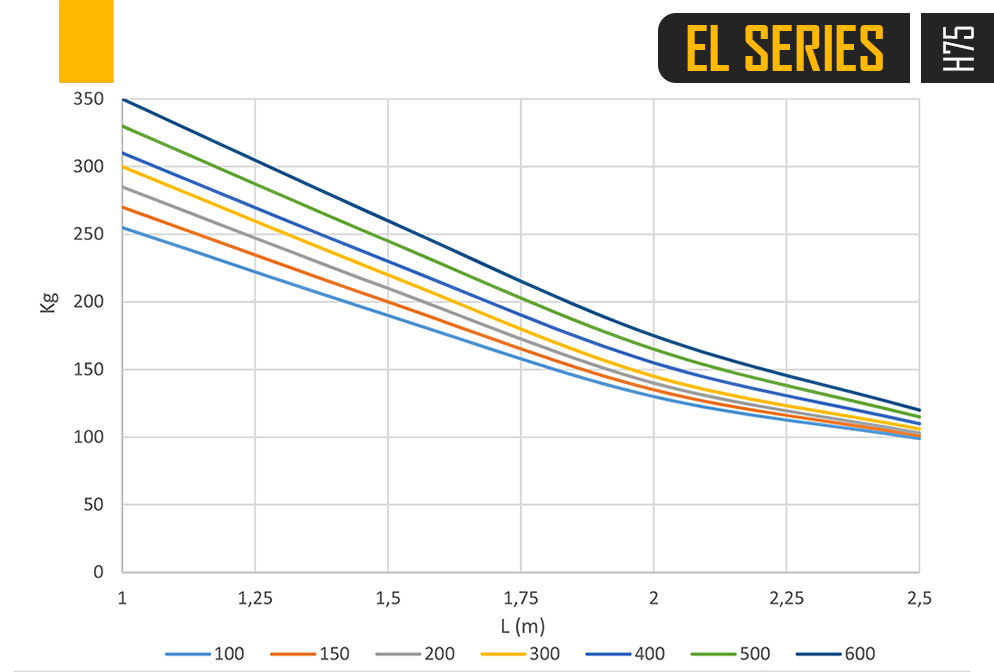

| # | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Weight (kg/m) |
| 1 | EL-10075-150 | Heavy Duty Cable Ladders | 1.5 | 100 | 75 | 2.931 |
| 2 | EL-10075-200 | Heavy Duty Cable Ladders | 2.0 | 100 | 75 | 3.761 |
| 3 | EL-15075-150 | Heavy Duty Cable Ladders | 1.5 | 150 | 75 | 3.084 |
| 4 | EL-15075-200 | Heavy Duty Cable Ladders | 2.0 | 150 | 75 | 3.915 |
| 5 | EL-20075-150 | Heavy Duty Cable Ladders | 1.5 | 200 | 75 | 3.237 |
| 6 | EL-20075-200 | Heavy Duty Cable Ladders | 2.0 | 200 | 75 | 4.069 |
| 7 | EL-25075-150 | Heavy Duty Cable Ladders | 1.5 | 250 | 75 | 3.391 |
| 8 | EL-25075-200 | Heavy Duty Cable Ladders | 2.0 | 250 | 75 | 4.223 |
| 9 | EL-30075-150 | Heavy Duty Cable Ladders | 1.5 | 300 | 75 | 3.544 |
| 10 | EL-30075-200 | Heavy Duty Cable Ladders | 2.0 | 300 | 75 | 4.377 |
| 11 | EL-40075-150 | Heavy Duty Cable Ladders | 1.5 | 400 | 75 | 3.850 |
| 12 | EL-40075-200 | Heavy Duty Cable Ladders | 2.0 | 400 | 75 | 4.685 |
| 13 | EL-45075-150 | Heavy Duty Cable Ladders | 1.5 | 450 | 75 | 4.007 |
| 14 | EL-45075-200 | Heavy Duty Cable Ladders | 2.0 | 450 | 75 | 4.842 |
| 15 | EL-50075-150 | Heavy Duty Cable Ladders | 1.5 | 500 | 75 | 4.156 |
| 16 | EL-50075-200 | Heavy Duty Cable Ladders | 2.0 | 500 | 75 | 4.993 |
| 17 | EL-60075-150 | Heavy Duty Cable Ladders | 1.5 | 600 | 75 | 4.463 |
| 18 | EL-60075-200 | Heavy Duty Cable Ladders | 2.0 | 600 | 75 | 5.301 |
| 19 | EL-75075-150 | Heavy Duty Cable Ladders | 1.5 | 750 | 75 | 4.926 |
| 20 | EL-75075-200 | Heavy Duty Cable Ladders | 2.0 | 750 | 75 | 5.766 |
| 21 | EL-90075-150 | Heavy Duty Cable Ladders | 1.5 | 900 | 75 | 5.388 |
| 22 | EL-90075-200 | Heavy Duty Cable Ladders | 2.0 | 900 | 75 | 6.231 |

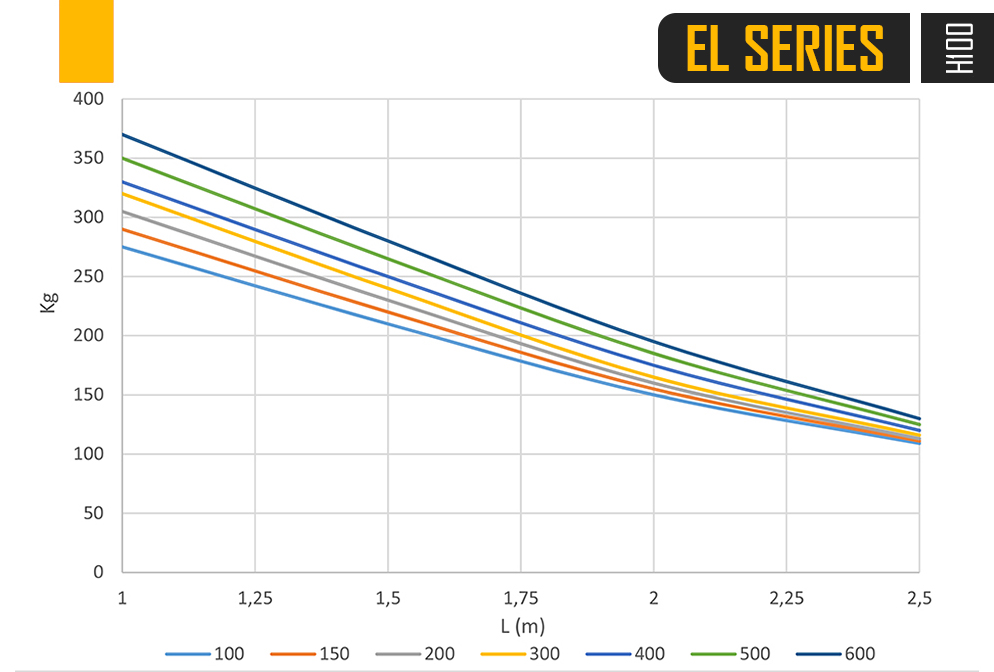

| # | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Weight (kg/m) |
| 1 | EL-100100-150 | Heavy Duty Cable Ladders | 1.5 | 100 | 100 | 3.570 |
| 2 | EL-100100-200 | Heavy Duty Cable Ladders | 2.0 | 100 | 100 | 4.600 |
| 3 | EL-150100-150 | Heavy Duty Cable Ladders | 1.5 | 150 | 100 | 3.723 |
| 4 | EL-150100-200 | Heavy Duty Cable Ladders | 2.0 | 150 | 100 | 4.754 |
| 5 | EL-200100-150 | Heavy Duty Cable Ladders | 1.5 | 200 | 100 | 3.876 |
| 6 | EL-200100-200 | Heavy Duty Cable Ladders | 2.0 | 200 | 100 | 4.908 |
| 7 | EL-250100-150 | Heavy Duty Cable Ladders | 1.5 | 250 | 100 | 4.029 |
| 8 | EL-250100-200 | Heavy Duty Cable Ladders | 2.0 | 250 | 100 | 5.062 |
| 9 | EL-300100-150 | Heavy Duty Cable Ladders | 1.5 | 300 | 100 | 4.183 |
| 10 | EL-300100-200 | Heavy Duty Cable Ladders | 2.0 | 300 | 100 | 5.216 |
| 11 | EL-400100-150 | Heavy Duty Cable Ladders | 1.5 | 400 | 100 | 4.489 |
| 12 | EL-400100-200 | Heavy Duty Cable Ladders | 2.0 | 400 | 100 | 5.524 |
| 13 | EL-450100-150 | Heavy Duty Cable Ladders | 1.5 | 450 | 100 | 4.645 |
| 14 | EL-450100-200 | Heavy Duty Cable Ladders | 2.0 | 450 | 100 | 5.681 |
| 15 | EL-500100-150 | Heavy Duty Cable Ladders | 1.5 | 500 | 100 | 4.795 |
| 16 | EL-500100-200 | Heavy Duty Cable Ladders | 2.0 | 500 | 100 | 5.832 |
| 17 | EL-600100-150 | Heavy Duty Cable Ladders | 1.5 | 600 | 100 | 5.102 |
| 18 | EL-600100-200 | Heavy Duty Cable Ladders | 2.0 | 600 | 100 | 6.140 |
| 19 | EL-750100-150 | Heavy Duty Cable Ladders | 1.5 | 750 | 100 | 5.564 |
| 20 | EL-750100-200 | Heavy Duty Cable Ladders | 2.0 | 750 | 100 | 6.605 |
| 21 | EL-900100-150 | Heavy Duty Cable Ladders | 1.5 | 900 | 100 | 6.027 |
| 22 | EL-900100-200 | Heavy Duty Cable Ladders | 2.0 | 900 | 100 | 7.070 |

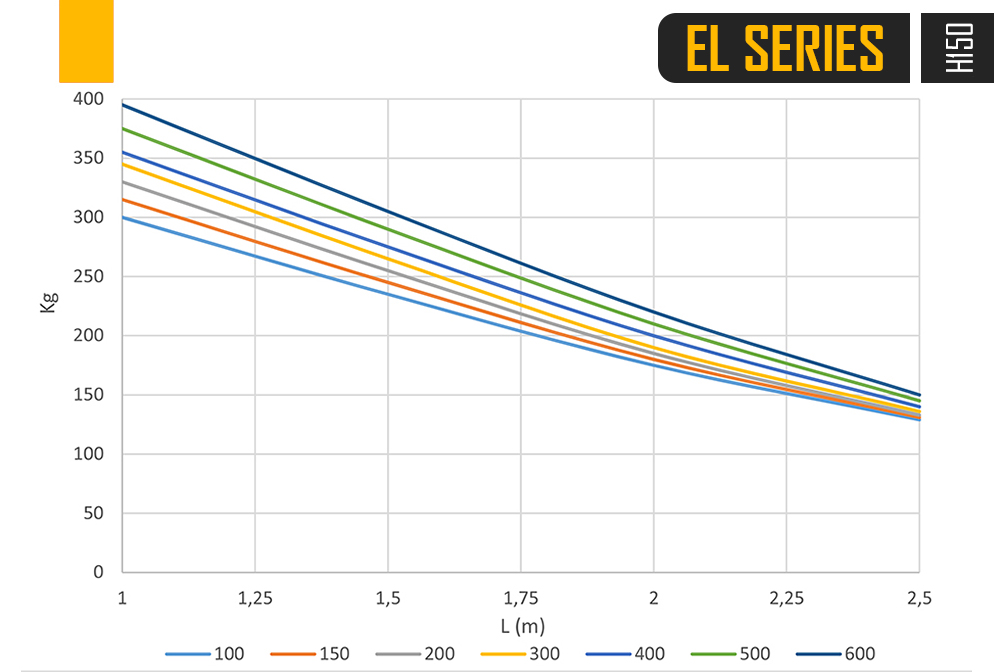

| # | Product Code | Product Description | T (mm) | W (mm) | H (mm) | Weight (kg/m) |
| 1 | EL-100150-150 | Heavy Duty Cable Ladders | 1.5 | 100 | 150 | 4.765 |
| 2 | EL-100150-200 | Heavy Duty Cable Ladders | 2.0 | 100 | 150 | 6.169 |
| 3 | EL-150150-150 | Heavy Duty Cable Ladders | 1.5 | 150 | 150 | 4.918 |
| 4 | EL-150150-200 | Heavy Duty Cable Ladders | 2.0 | 150 | 150 | 6.323 |
| 5 | EL-200150-150 | Heavy Duty Cable Ladders | 1.5 | 200 | 150 | 5.071 |
| 6 | EL-200150-200 | Heavy Duty Cable Ladders | 2.0 | 200 | 150 | 6.477 |
| 7 | EL-250150-150 | Heavy Duty Cable Ladders | 1.5 | 250 | 150 | 5.224 |
| 8 | EL-250150-200 | Heavy Duty Cable Ladders | 2.0 | 250 | 150 | 6.631 |
| 9 | EL-300150-150 | Heavy Duty Cable Ladders | 1.5 | 300 | 150 | 5.378 |
| 10 | EL-300150-200 | Heavy Duty Cable Ladders | 2.0 | 300 | 150 | 6.785 |
| 11 | EL-400150-150 | Heavy Duty Cable Ladders | 1.5 | 400 | 150 | 5.684 |
| 12 | EL-400150-200 | Heavy Duty Cable Ladders | 2.0 | 400 | 150 | 7.093 |
| 13 | EL-450150-150 | Heavy Duty Cable Ladders | 1.5 | 450 | 150 | 5.840 |
| 14 | EL-450150-200 | Heavy Duty Cable Ladders | 2.0 | 450 | 150 | 7.250 |
| 15 | EL-500150-150 | Heavy Duty Cable Ladders | 1.5 | 500 | 150 | 5.990 |
| 16 | EL-500150-200 | Heavy Duty Cable Ladders | 2.0 | 500 | 150 | 7.401 |
| 17 | EL-600150-150 | Heavy Duty Cable Ladders | 1.5 | 600 | 150 | 6.297 |
| 18 | EL-600150-200 | Heavy Duty Cable Ladders | 2.0 | 600 | 150 | 7.709 |
| 19 | EL-750150-150 | Heavy Duty Cable Ladders | 1.5 | 750 | 150 | 6.759 |
| 20 | EL-750150-200 | Heavy Duty Cable Ladders | 2.0 | 750 | 150 | 8.174 |
| 21 | EL-900150-150 | Heavy Duty Cable Ladders | 1.5 | 900 | 150 | 7.222 |
| 22 | EL-900150-200 | Heavy Duty Cable Ladders | 2.0 | 900 | 150 | 8.639 |
*Hot Dip Galvanizing (TS EN ISO 1461)
- Material weights are approximate values, may vary ± 10%.
- The table is based on the weights of products coated with hot dip galvanizing.
- Standard lengths are 2500 mm and 3000 mm.
- For detailed information and special size orders, please contact your customer representative.
